How to code Tedsen remote controls

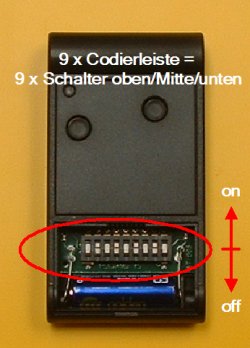

1) Tedsen remote controls with a 9x coding switch e.g. type SKX-MD, SKX-LC, SKX-SL, SKX-SL, SKX: |
|
|
|
Coding is very easy since you simply set all nine switch positions of the new remote control same as the positions of your existing remote control. Please notice the coding switch has 3 different positions - top/middle/bottom - (like shown - switch position 1 to middle, 2 to bottom, 3 to middle ...) . . |

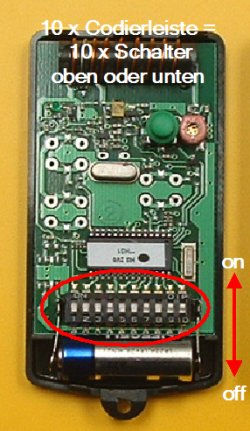

| 2) Tedsen remote controls with a 10x coding switch e.g. type HS, AS: | |
|
|
See above - but now set all 10 switch positions (only top or bottom) of the new remote control same as the positions of your existing remote control, here switch position 1 to bottom, 2 to bottom ... |

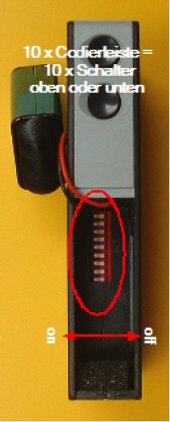

| 3) Tedsen-Handsender remote controls with a 10x coding switch, e.g. type SM, SM-MD: | |
|
|
See top - but now set all 10 switch positions (only top or bottom) of the new remote control same as the positions of your existing remote control, here switch 1 to bottom, 2 to bottom ... |
4) Further manuals to download, e.g. for the type Tedsen SKJ
